Head Interface Board for Ricoh MH5220 (Gen 5S)
Printhead Manufacturer
Ricoh
Printhead Family
MH5220 (Gen 5S)
Overview

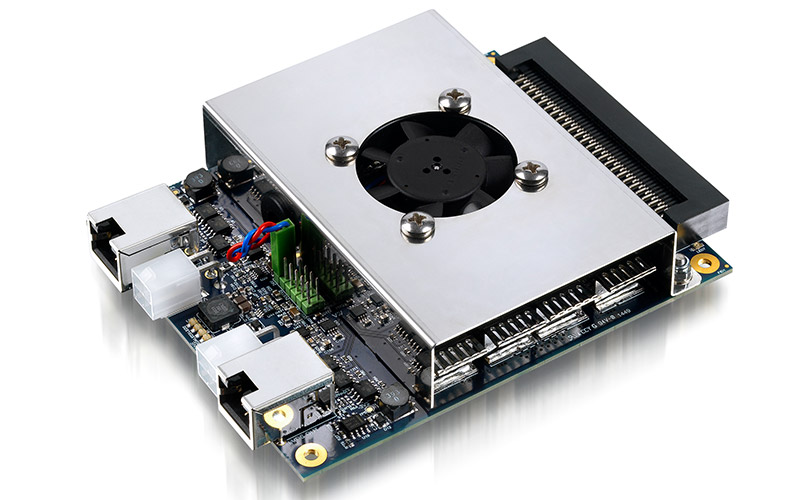

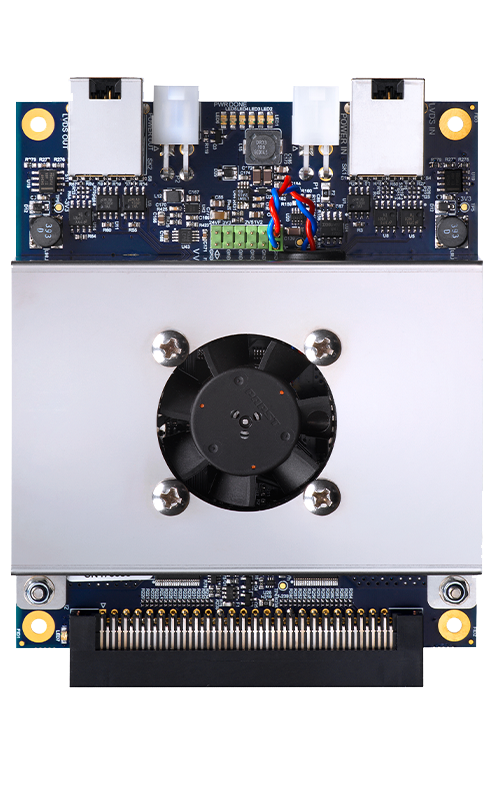

GIS’s Head Interface Board for Ricoh MH5220 (Gen 5S) provides the communications link between the Ricoh MH5220 (Gen 5S) printhead series and the GIS Print Manager Board (C2, C8 or C8-3). Supports one printhead.
Printhead Variants Supported
MH5420/MH5440 (Gen 5)
GIS Legacy Identifier & Product Code
Head Interface Board RH-1280 for RMH5220
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 100mm |
| Width | 120mm |
| Depth | 29.2mm |
| Weight | 200g |
Monitoring
| Printhead Heater | |
| Thermal Protection |
Control
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Connectors | 2 |
| Cable length from PMB | up to 10m |
| Cable length from HIB to Head | 300mm |
Advanced Features
The compact RH-1280 with integrated air cooling system is designed to support the Ricoh MH5420/5440 (Gen 5) printhead.
