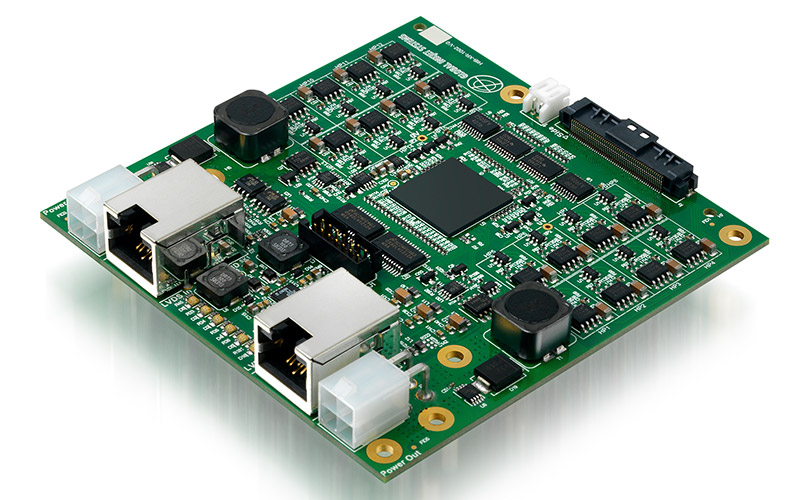

Head Interface Board for Xaar 1002
Printhead Manufacturer
Xaar
Printhead Family
1003 GS6 / GS12 / GS40
Overview
The 1002 is a GIS Head Interface Board. It is designed to provide communications between the Xaar 1003 GS6 / GS12 / GS40 printhead and the GIS Print Manager Board (PMB-C8/PMB-C2/PMB-C8-3).
Printhead Variants Supported
Xaar 1003 GS6, Xaar 1003 GS12, Xaar 1003 GS40, Xaar 1002 GS6, Xaar 1002 GS12, Xaar 1002 GS40
GIS Legacy Identifier & Product Code
Head Interface Board 1002 for 1003 GS6/GS12/GS40
Print Modes
| Binary | |
| Greyscale | |
| Number of Grey levels | 8 |
Performance
- Printhead Voltage Base and Offset Control
- Left and Right Nozzle Bank Voltage Trim (1/16V steps)
- Grey level / Binary Mode Control
- Grey level Drop Count Control
- Printhead Waveform Control
Dimensions
| Length | 98mm |
| Width | 74mm |
| Depth | 15mm |
| Weight | 100g |
Connectivity
| Power Supply | |
| Connectors | 2 |
| Cable length from PMB | up to 10m |
| Cable length from HIB to Head | 300mm |
Download Datasheets
Head Interface Board for Xaar 1002 for 1003 GS6 / GS12 / GS40
