Head Interface Board for Konica Minolta KM1800i
Printhead Manufacturer
Konica Minolta
Printhead Family
KM1800i
Overview

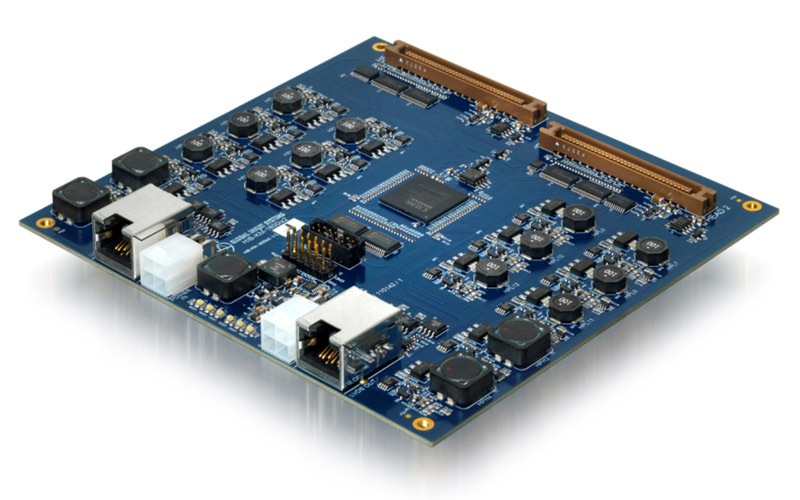

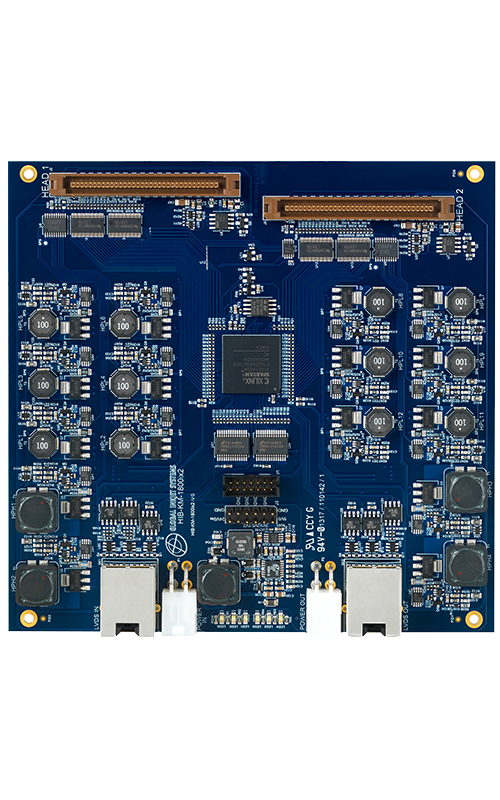

The KM-1800i Head Interface Board from GIS provides the direct communications link between Konica Minolta KM1800i printheads and the GIS Print Manager Board (C8-3). Supports two printheads.
Printhead Variants Supported
KM1800i
Print Modes
| Binary | |
| Greyscale |
Performance
The KM-1800i is specifically designed with a small form factor for compact system architectures. Each board can drive up to 2 x KM1800i printheads.
Dimensions
| Length | 140mm |
| Width | 140mm |
| Depth | 150mm |
| Weight | 185g |
Monitoring
| Printhead Heater | |
| Thermal Protection |
Control
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Connectors | 3 |
| Cable length from PMB | up to 10m |
| Cable length from HIB to Head | 300mm |
Advanced Features
- Printhead and Heater Voltage Control
- Left and Right Nozzle Bank Voltage Trim (0.1V steps)
- Printhead Thermistor Control (0.1ºC steps)
- Grey Level / Binary Mode Control
- Grey Level Drop Count Control
- Printhead Waveform Control
Download Datasheets
Head Interface Board for Konica Minolta KM1800i for KM1800i
