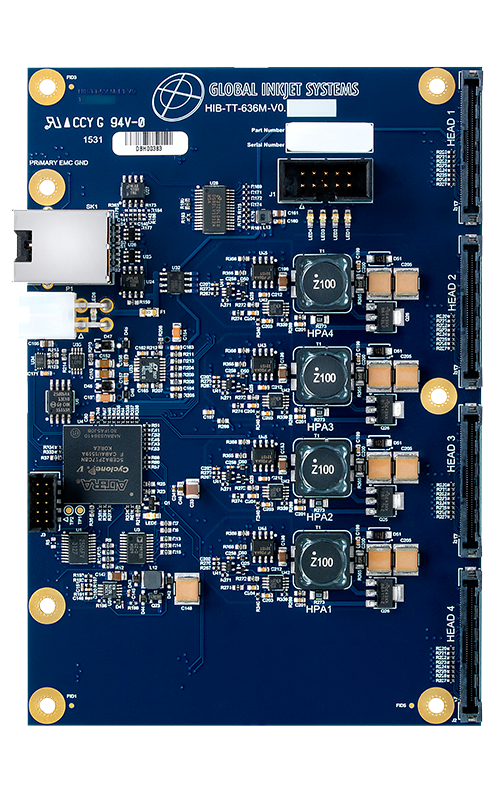

Printhead Card for Toshiba 636M
Printhead Manufacturer
Riso
Printhead Family
CF1/CF1L/CF1XL (U)
Overview
GIS’s TT-636-M Printhead Card provides the communications link between RISO CF1, CF1L and CF1XL printheads and the GIS Printhead Card Manager (C2 or C8-3). Supports up to four printheads.
Printhead Variants Supported
CF1, CF1L, CF1XL, CF1B, CF1BL, CF1BXL, CF1BD3, CF1LBD3, CF1XLBD3
GIS Legacy Identifier & Product Code
1200246 - HIB-TT-636M
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 145mm |
| Width | 100mm |
| Depth | 15mm |
| Weight | 105g |
Monitoring
| Printhead Heater | |
| Thermal Protection |
Control
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Connectors | 2 |
| Cable length from PMB | up to 5m |
| Cable length from HIB to Head | 10mm |
Download Datasheets
Printhead Card for Toshiba 636M for CF1/CF1L/CF1XL (U)
