Printhead Manager for Seiko RC1536
Printhead Manufacturer
Sii
Printhead Family
RC1536
Overview

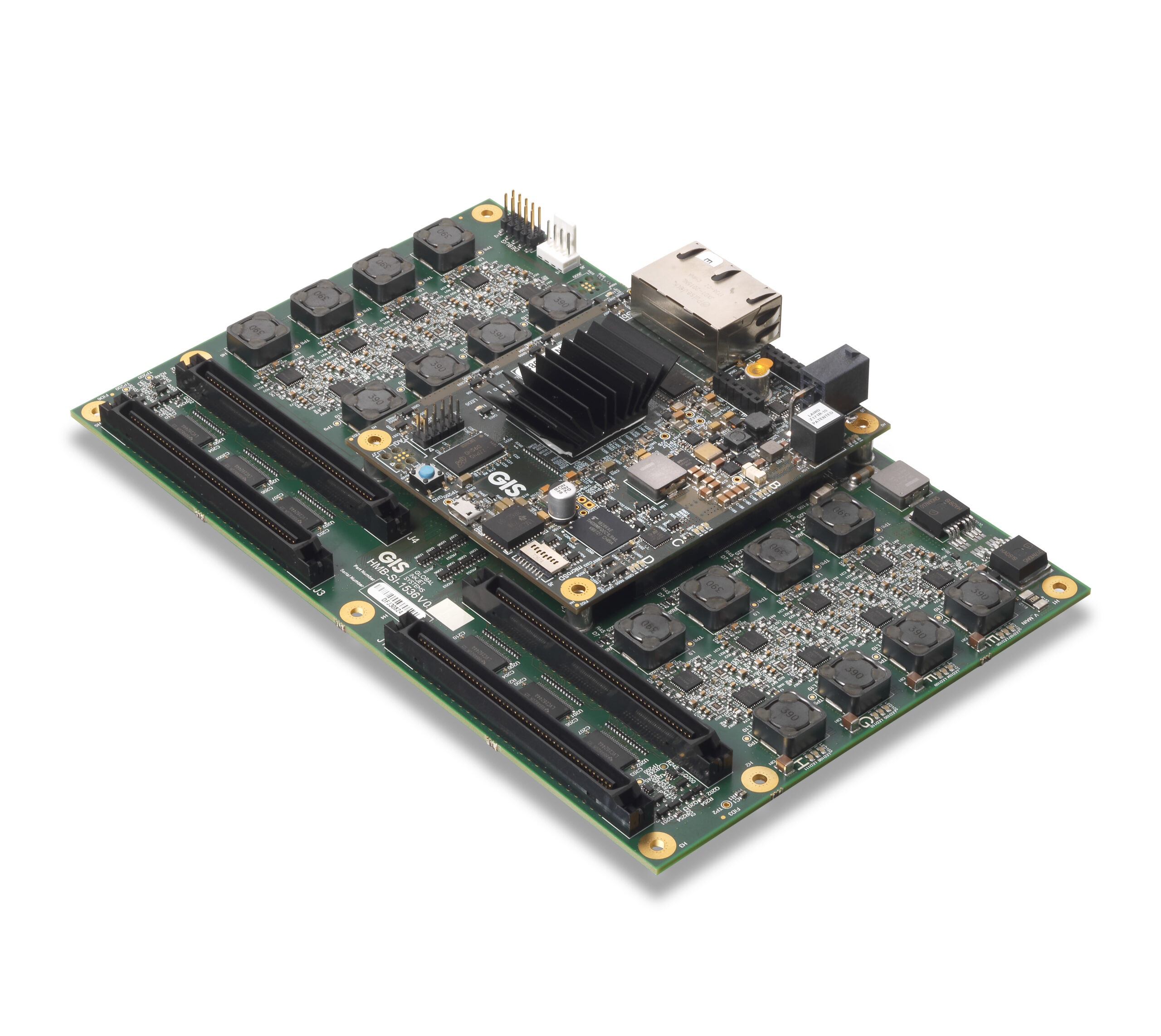

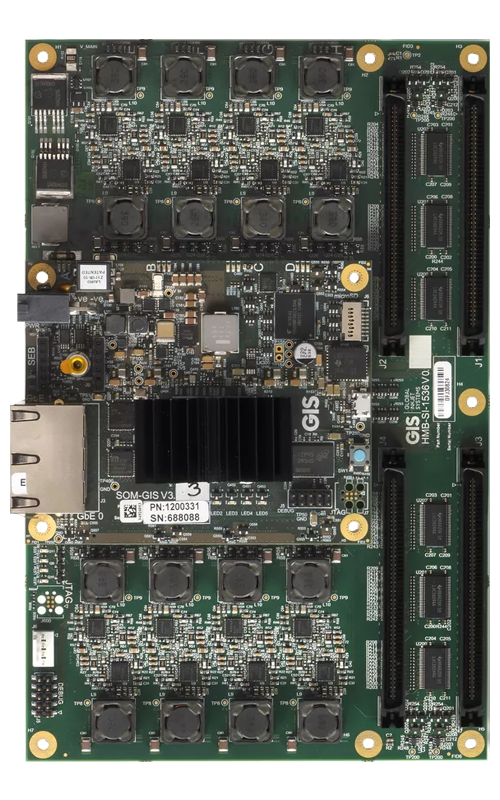

The SI-1536 allows up to 4 x Seiko Instruments RC1536 printheads to be driven from each board. Developed in collaboration between Seiko Instruments and GIS, it supports the full binary and greyscale capabilities of the Seiko printhead.
Printhead Variants Supported
RC1536
GIS Legacy Identifier & Product Code
Printhead Manager SI-1536
Supported Printhead Functions
| Binary and Greyscale Printing | |
| Continuous Printhead Status Monitoring | |
| Auto Printhead Shutdown |
HMB Integration
| Length | 210mm |
| Width | 135mm |
| Depth | 38mm |
| Weight | 282g |
| PC to HMB Connection Length | upto 100m |
| HMB to Printhead Connection Length | 300mm |
| Connectivity | Ethernet |
| Single Power Supply and Standard Connectors | |
| Multiple Cooling Options |
Drive Electronics Functions
| Buffered and Streamed Print | |
| Encoder and Product Detect Monitoring | |
| Auto Electronics Shutdown | |
| Remote Updates | |
| Diagnostic LEDs | |
| Continuous Electronics Status Monitoring | |
| Reverse Power Polarity Detection and Protection | |
| Over Voltage Protection |
S/W Interface Options to HMB
Advanced Features
When combined with GIS Atlas software and ink delivery systems, the SI-1536 forms part of a fully integrated inkjet subsystem for machine builders and system integrators.
Download Datasheets
Printhead Manager for Seiko RC1536 for RC1536
